WECIN7143
From wireless network security, security hardware platform, and network security applications to network security hardware platform. With powerful network performance and multiple network interfaces, our network security platform is SSL VPN, link/server load balancing, IDP/IPS, bandwidth Ideal for management, firewall, anti-spyware, UTM, network access control and AAA service applications. Hardware design and customized manufacturing of supporting network security software for fine network bandwidth management, load balancing, traffic statistics, and effective interception External attacks on the network, etc.;2nd Generation Intel® Xeon® Scalable Processor Platform
Features
Single-socket 2nd Generation Intel® Xeon® Scalable Processor Series, codename: Cascade Lake
Support 6 channels, 10 memory slots
Support DDR4 2400/2666/2933/3200 ECC & REG, up to 640GB
CRPS (1+1) power supply, supports power status monitoring
Supports 8 * front network expansion modules, using PCIe Gen3 speed
Optional TPM 1.2/2.0 module
Support IPMI 2.0
Description
Product Details
Single-socket 2nd Generation Intel® Xeon® Scalable Processor Series
Intel® C621/C627 PCH, codename: Lewisburg
8 * Front network expansion module, the interface adopts PCIE x8 gold finger
Memory
Support 6 channels, 10 memory slots
Support DDR4 2400/2666/2933/3200 ECC & REG, up to 640GB

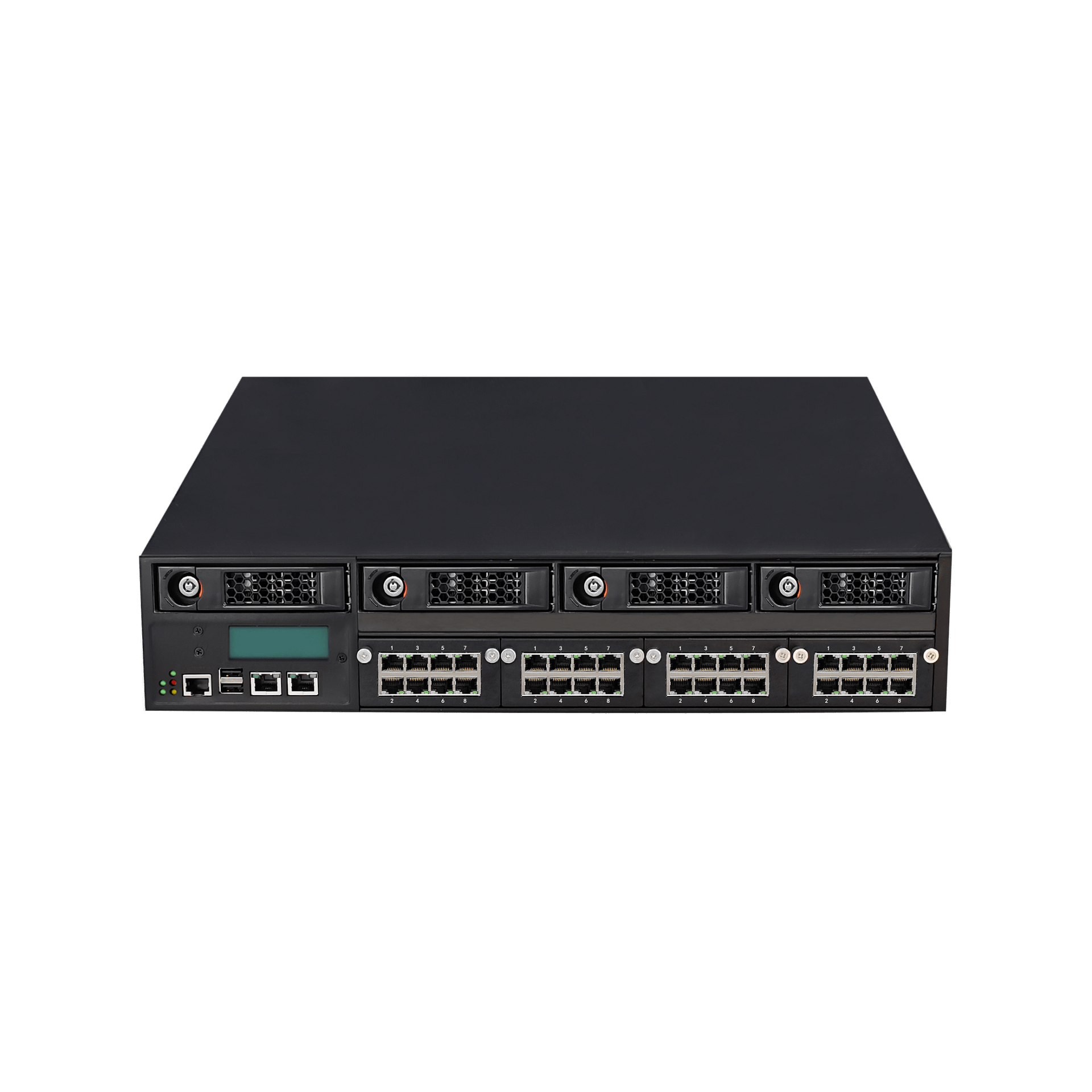

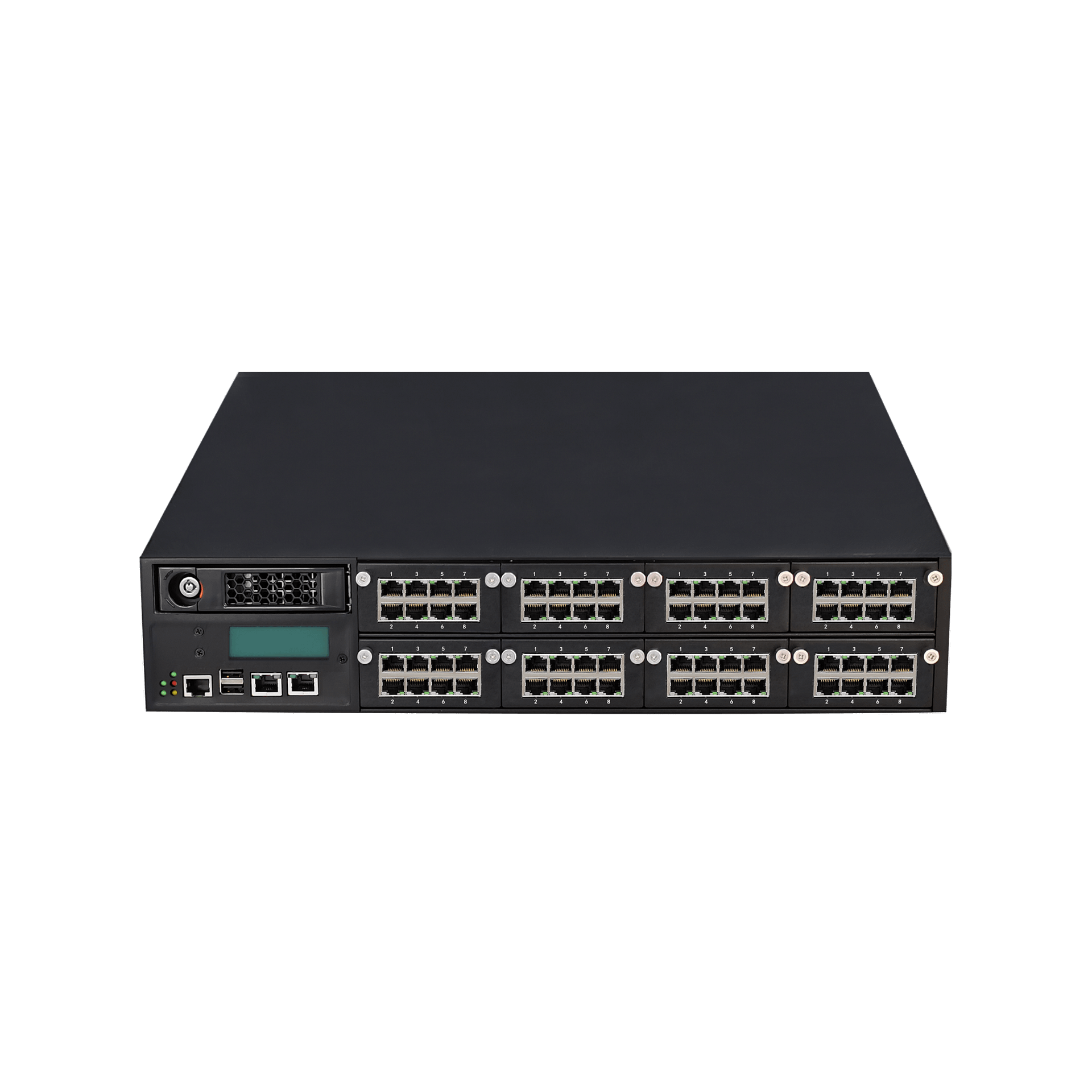

I/O front panel interface
LCM module
LED indicator: power status/HDD status/GPIO status/system fault status
Up to 4*3.5” HDD removable bay
Up to 8 * front expansion network module tray
1 * USB 2.0/USB3.0 interface
1*RJ45 serial port
2 * Network management interface 2 * RJ45

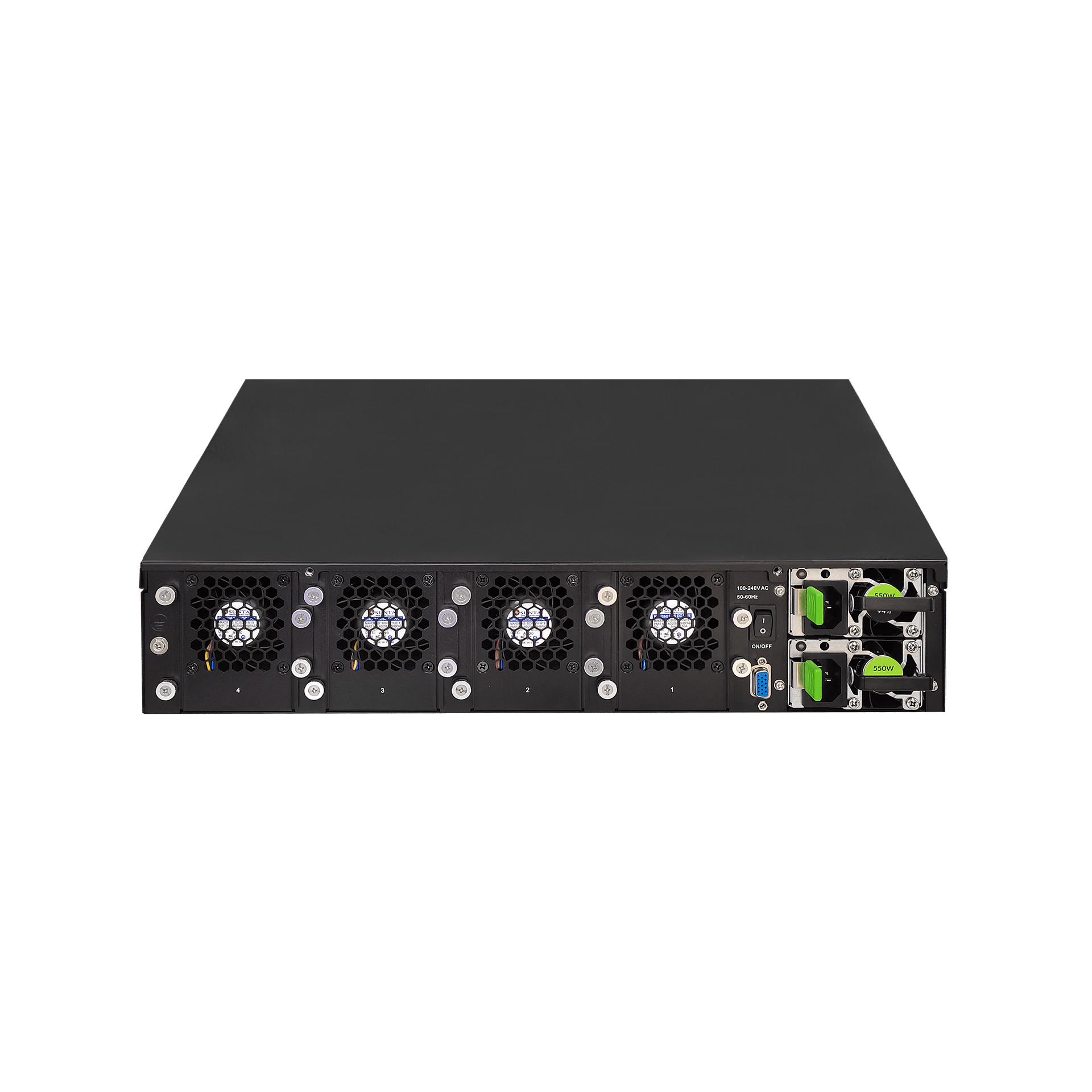

I/O rear panel connector
3 * system wind
1*Power switch
1 * VGA interface (optional)
Extension ports
Removable front expansion network module
Support 10/100/1000/10G/25G/40G/100G/200G rate
Support 1/2/4/8 interface quantity, support optical/electrical interface
Supports Bypass function ** Please refer to the network module information **
1* Internal PCIE x8 slot
1 * mini-PCIe expansion slot
1*SlimSAS socket (configurable as SATA or PCIE)
storage
1*mSATA
1*M.2 (NVMe)
6*SATA
power input
550W 1+1 CRPS redundant power supply
Product Size
Chassis size (depth * width * height): 600mm * 435mm * 88mm
weight
Net weight: 12kg
Including packaging: 15kg
environment
Working temperature: 0°C~40°C
Storage temperature: -20°C~75°C
Relative humidity: 10%~90% non-condensing
Certification
Comply with CCC
