WECIN7144
From wireless network security, security hardware platform, and network security applications to network security hardware platform. With powerful network performance and multiple network interfaces, our network security platform is SSL VPN, link/server load balancing, IDP/IPS, bandwidth Ideal for management, firewall, anti-spyware, UTM, network access control and AAA service applications. Hardware design and customized manufacturing of supporting network security software for fine network bandwidth management, load balancing, traffic statistics, and effective interception External attacks on the network, etc.;3rd Generation Intel® Xeon® D Processor Platform
Features
3rd generation Intel® Xeon® D processor, codename: Ice Lake-D series
Support 3 channels, 6 memory slots
Support DDR4 2666/2933 ECC/non-ECC memory, up to 384GB
Support onboard 10*Gigabit electrical port, 2 pairs of BYPASS
Support onboard 8 * Gigabit optical port/10G optical port/25G optical port can be configured
Supports 6 * network modules, or 2 * network modules + 4 hard disks
Support Intel QAT
Single power supply/redundant power supply, optional
Optional TPM 1.2/2.0 module
Description
Product Details
3rd Generation Intel® Xeon® D SoC Processors
2 * Front network expansion module, the interface adopts PCIE x8 gold finger
Memory
Support 3 channels, 6 memory slots
Support DDR4 2666/2933 ECC/non-ECC memory, up to 384GB

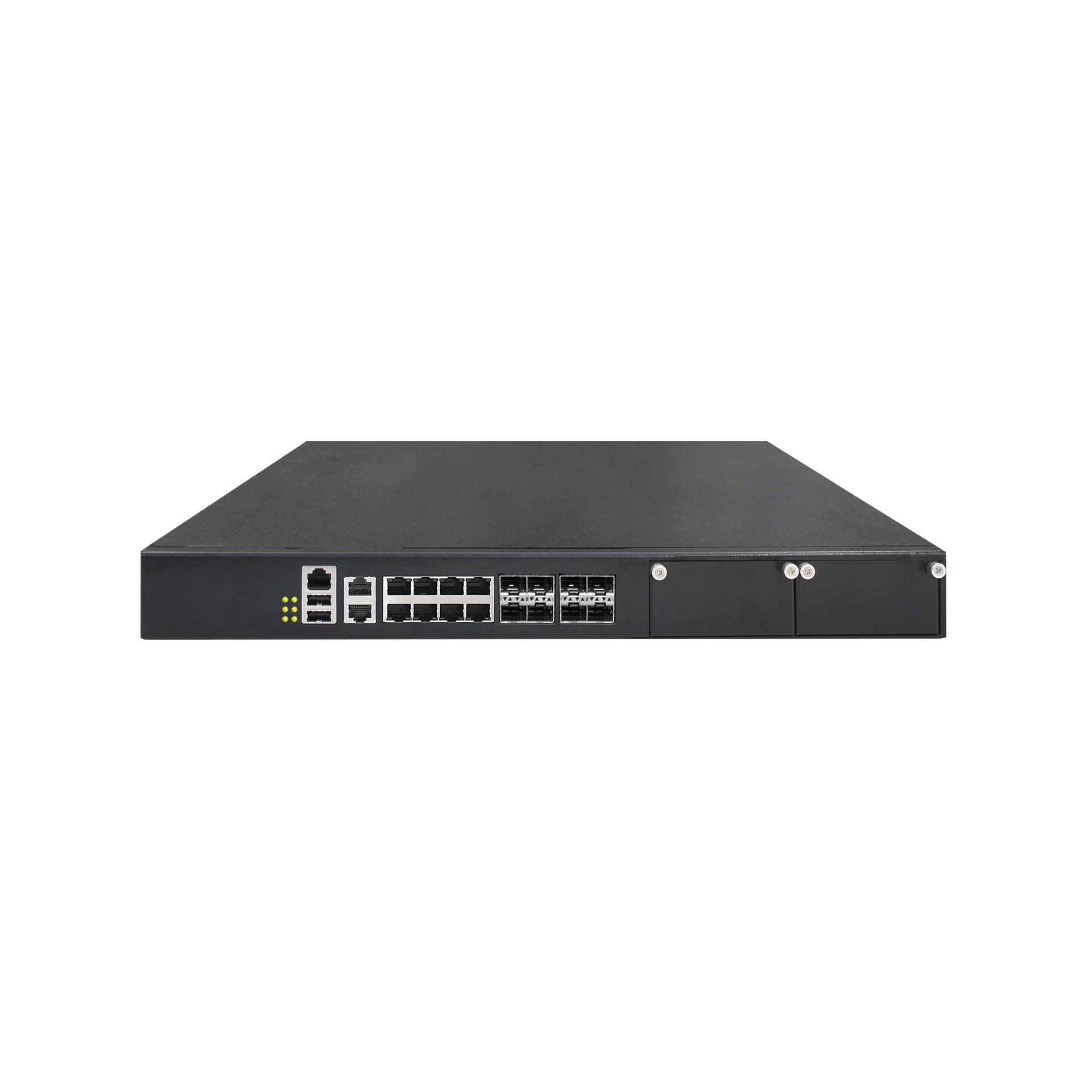

I/O front panel interface
LED indicator: power status/HDD status/GPIO status/BYPASS status
2*USB 2.0 interface
10*GE RJ45
Support 2 groups of Bypass
8 * SFP/SFP+/SFP28 (configurable)
1*RJ45 serial port
1*LCM (optional)

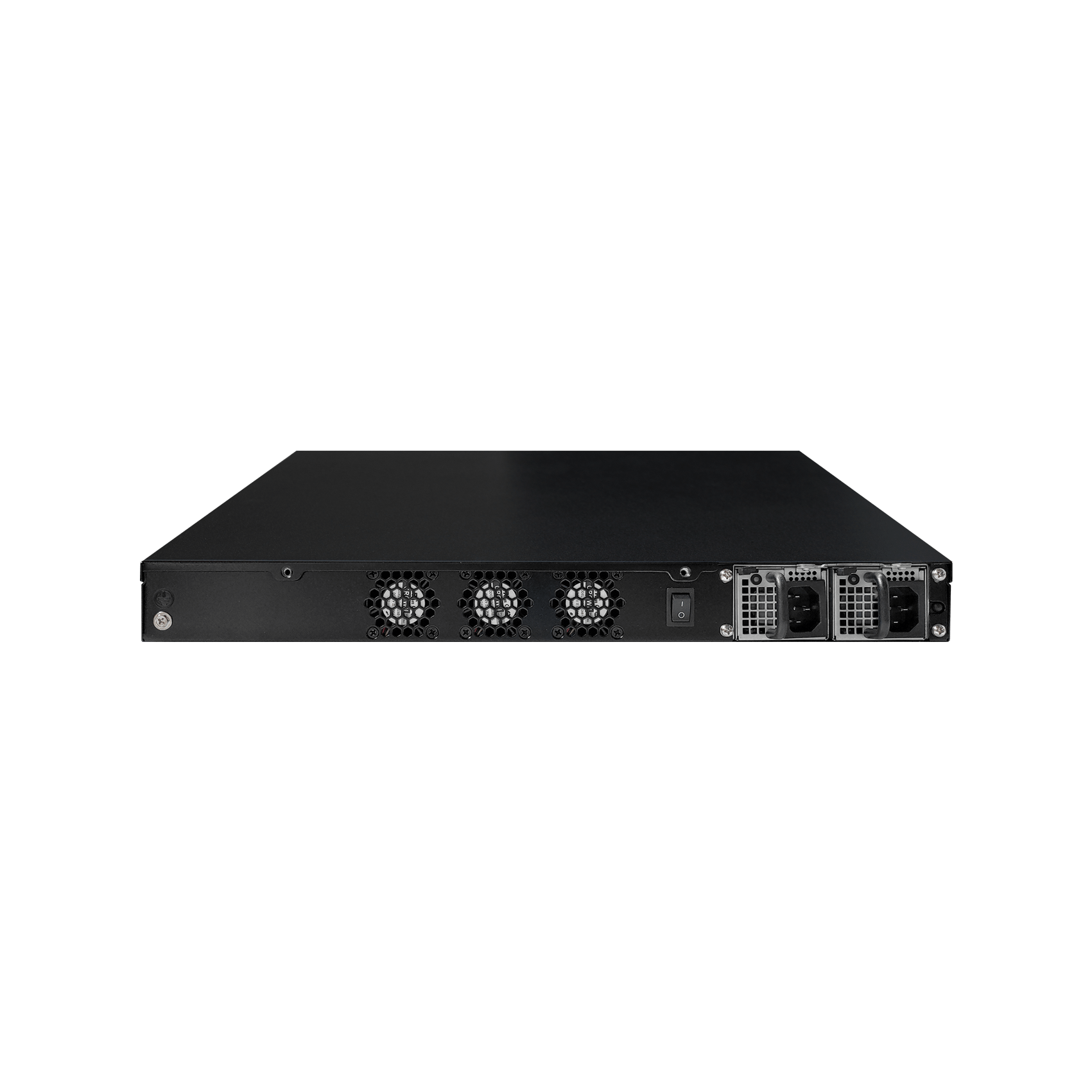

I/O rear panel interface
power input
1*Power switch
3* system fans
Extension ports
2 * Front expansion network module
1* Internal PCIE x8 slot
1*mSATA slot
1*SlimSAS socket (configurable as SATA or PCIE)
storage
1*mSATA
8*SATA (4 of which are expanded through SlimSAS sockets)
power input
200W single/redundant power supply
Product Size
Chassis size (depth * width * height): 500mm * 435mm *44mm
weight
Net weight: 9Kg
Including packaging: 12Kg
environment
Working temperature: 0°C~40°C
Storage temperature: -20°C~75°C
Relative humidity: 10%~90% non-condensing
Certification
Comply with CCC
