WECIN7147
From wireless network security, security hardware platform, and network security applications to network security hardware platform. With powerful network performance and multiple network interfaces, our network security platform is SSL VPN, link/server load balancing, IDP/IPS, bandwidth Ideal for management, firewall, anti-spyware, UTM, network access control and AAA service applications. Hardware design and customized manufacturing of supporting network security software for fine network bandwidth management, load balancing, traffic statistics, and effective interception External attacks on the network, etc.;2nd Generation Intel® Xeon® Scalable Processor Platform
main feature
Dual-socket 2nd Generation Intel® Xeon® Scalable Processor Series, codename: CascadeLake
Support 6 channels, 20 memory slots
Support DDR4 2400/2666/2933/3200 ECC & REG, maximum 1280GB
Tool-free/easy-to-remove SSD
CRPS (1+1) power supply, supports power status monitoring
Supports 8 * front network expansion modules, using PCIe Gen3 speed
Optional TPM 1.2/2.0 module
Support IPMI 2.0
There are no cables inside the chassis, all are connected by board cards
Description
product specifications

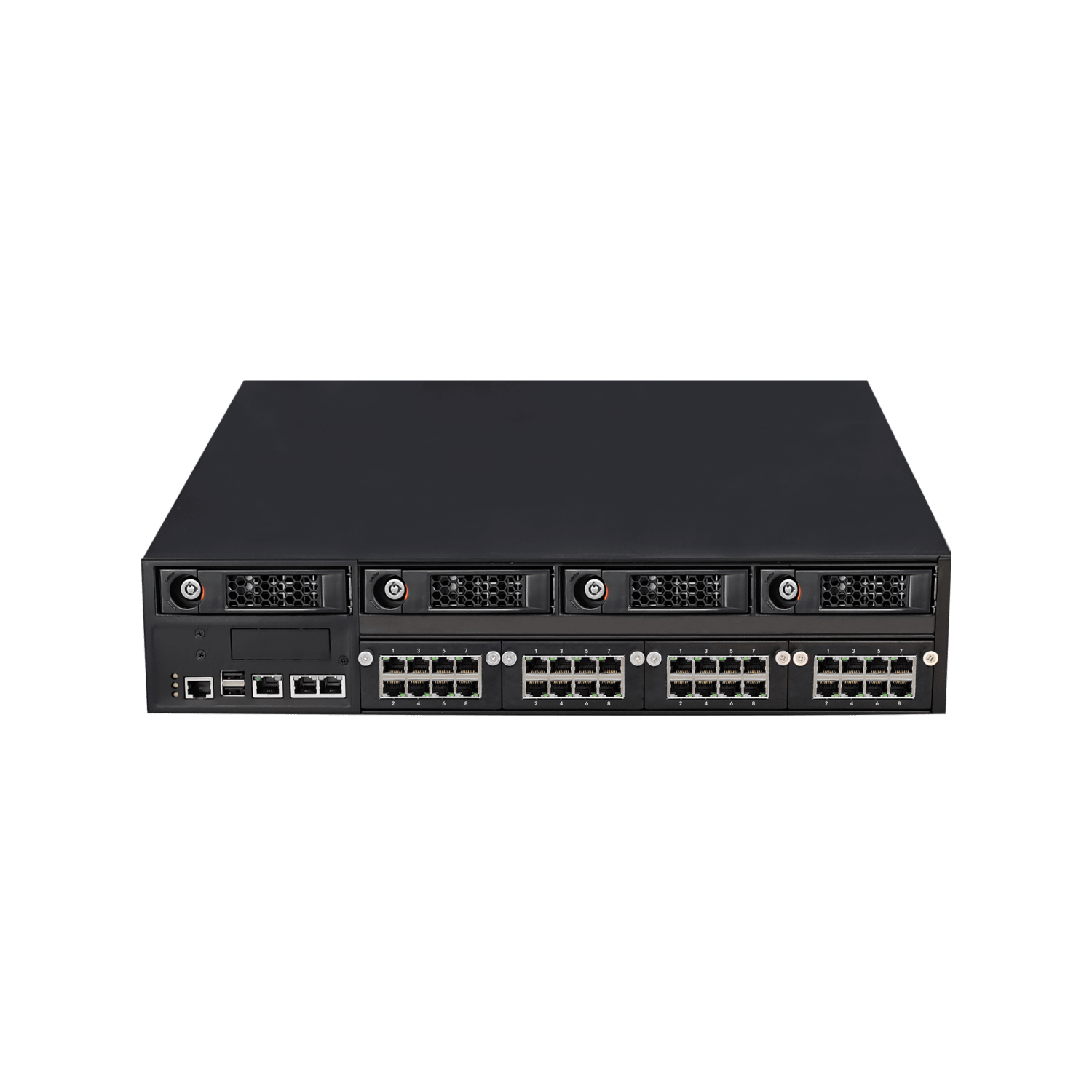

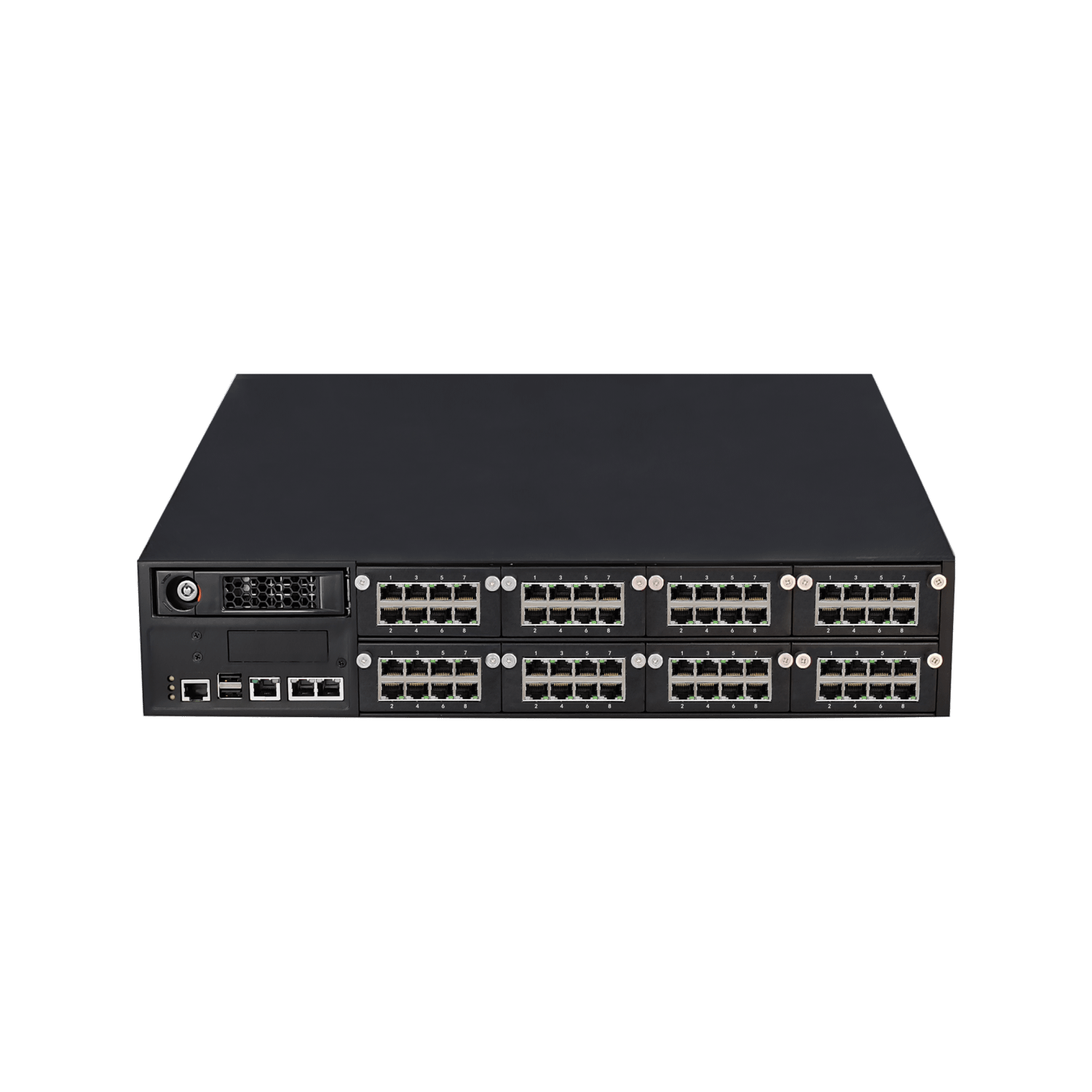

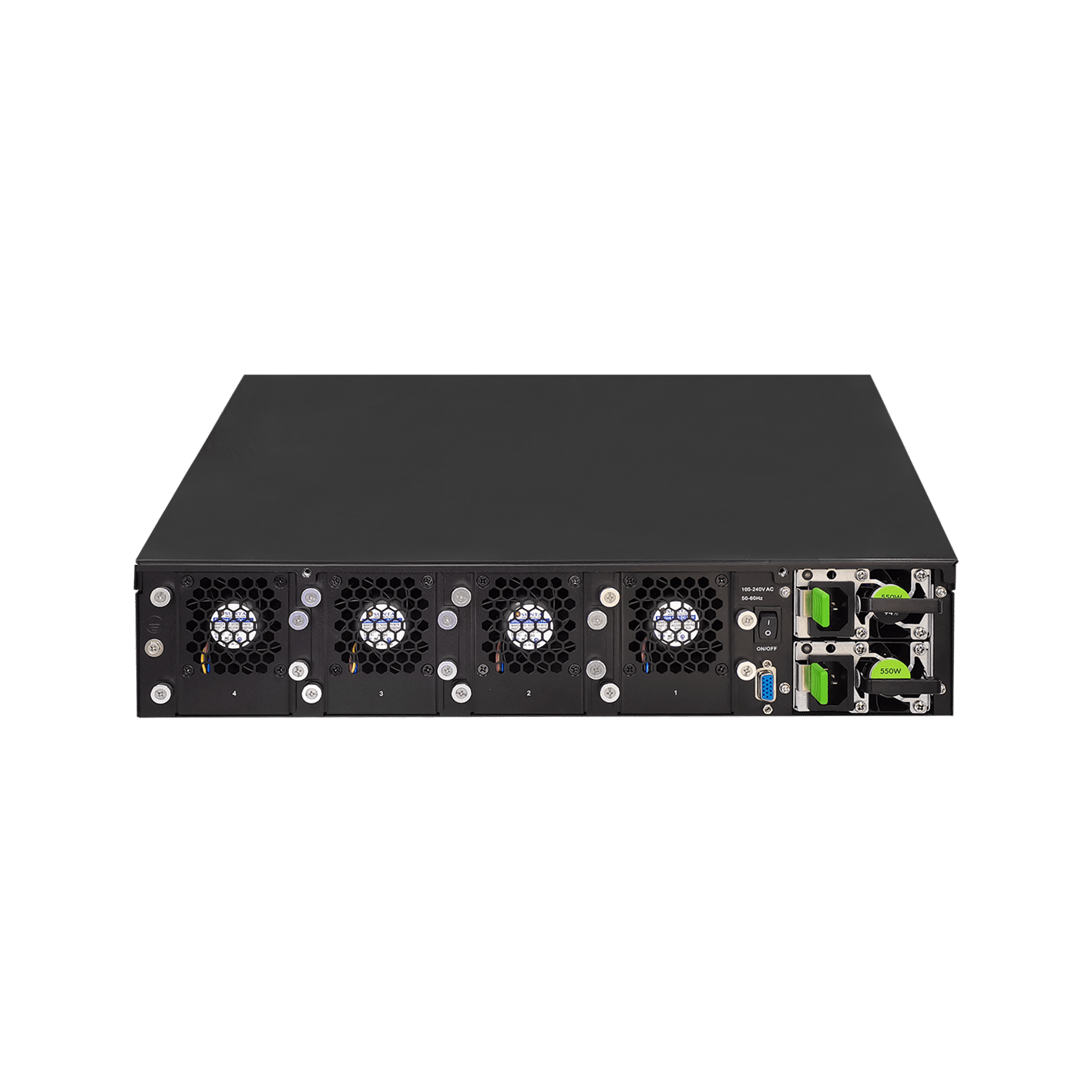

Dual-channel 2nd generation Intel® Xeon® Scalable series processor Intel® C621/C627 PCH, code name: Lewisburg 8 * Front network expansion module, the interface uses PCIE x8 golden finger memory to support 6 channels, 20 memory slots support DDR4 2400/2666/2933 ECC & REG, up to 1280GBI/O front panel interface supports LCM module LED indicators: power status/HDD status/GPIO status/system fault status up to 4 * 3.5” HDD removable bracket up to 8 * Front expansion network module tray 2 * USB 2.0 interface 1 * RJ45 serial port 1 * Reset button 2 * Network management interface 2 * RJ45I/O rear panel interface 4 * Hot-swappable system fan 1 * Power switch 1 * VGA interface expansion interface The removable front expansion network module supports 10/100/1000/10G/25G/40G/100G/200G. The rate supports the number of interfaces 1/2/4/8. It supports optical/electrical interfaces and supports Bypass function** Please refer to the network module. Information** 1 * Internal PCIE x8 slot storage 1 * 2.5″ hot-swappable hard drive 1 * M.2 2280 power input 550W/800W 1+1 CRPS redundant power supply Product Dimensions Chassis Dimensions (Depth * Width * Height): 626mm * 443mm * 88mm Weight Net weight: 16.4kg including packaging: 25kg Ambient operating temperature: 0°C~40°C Storage temperature: -20°C~75°C Relative humidity: 10%~90% Non-condensation certified in compliance with CCCNSB7147 Dual-way 2nd generation Intel® Xeon® Scalable series processor Intel® C621/C627 PCH, code name: Lewisburg 8 * Front network expansion module, the interface uses PCIE x8 gold finger to support 6 channels, 20 memory slots support DDR4 2400/ 2666/2933 ECC & REG, up to 1280GB Support LCM module LED indicators: power status/HDD status/GPIO status/system fault status up to 4 * 3.5” HDD removable bay up to 8 * front expansion network module tray 2 * USB 2.0 interface 1 * RJ45 serial port 1 * Reset button 2 * Network management interface 2 * RJ454 * Hot-swappable system fan 1 * Power switch 1 * VGA interface removable front expansion network module supports 10/100/1000/10G /25G/40G/100G/200G rate supports 1/2/4/8 interface quantity, supports optical/electrical interface and supports Bypass function** Please refer to the network module information** 1 * Internal PCIE x8 slot 1 * 2.5″ hot plug Unplug the hard drive 1 * M.2 2280550W/800W 1+1 CRPS redundant power supply Chassis size (depth * width * height): 626mm * 443mm * 88mm Net weight: 16.4kg including packaging: 25kg Working temperature: 0°C~40°C Storage temperature: -20°C~75°C Relative humidity: 10%~90% Non-condensation Compliant with CCC
