WECIN7160
From wireless network security, security hardware platform, and network security applications to network security hardware platform. With powerful network performance and multiple network interfaces, our network security platform is SSL VPN, link/server load balancing, IDP/IPS, bandwidth Ideal for management, firewall, anti-spyware, UTM, network access control and AAA service applications. Hardware design and customized manufacturing of supporting network security software for fine network bandwidth management, load balancing, traffic statistics, and effective interception External attacks on the network, etc.;4th Generation Intel® Xeon® Scalable Processor Platform
Features:
Dual-socket 4th Generation Intel® Xeon® Scalable Series Processors, codename: SapphireRapids
Support 8 channels, 20 memory slots
Support DDR5 4400/4800 ECC & REG, maximum 1280GB
Supports 3rd generation Intel® Optane persistent memory
Support 8 * front network expansion modules, using PCIe Gen3/4/5 rate
CRPS (1 + 1) redundant power supply
Optional TPM 2.0 module
Optional IPMI 2.0 RunBMC module
Description
Product Details
Dual-socket 4th Generation Intel® Xeon® Scalable Processors
Intel® C741 PCH, codename: Emmitsburg
8 * Front network expansion module, the interface adopts OCP 4C+ gold finger
Memory
Support 8 channels, 20 memory slots
Support DDR5 4400/4800 ECC & REG, maximum 1280GB

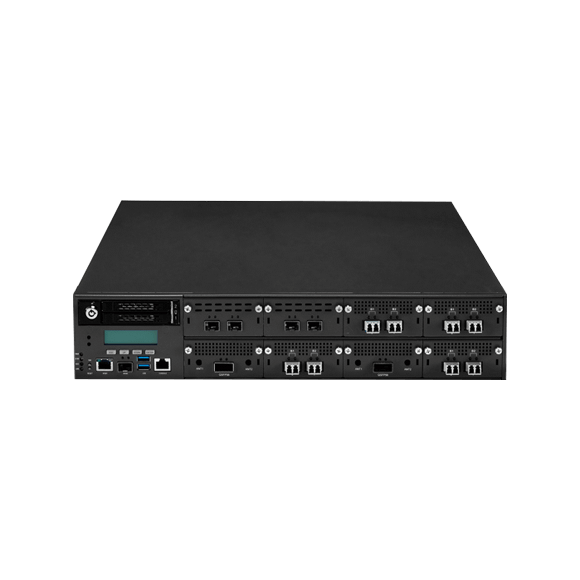

I/O front panel interface
Support LCM module
LED indicator: power status/HDD status/GPIO status/system fault status
Up to 4*3.5” HDD removable bay
Up to 8* front expansion network module tray
2* USB 3.0 interface
1*RJ45 serial port
1 *Reset button
2*Network management interface, 1*RJ45 + 1*SFP

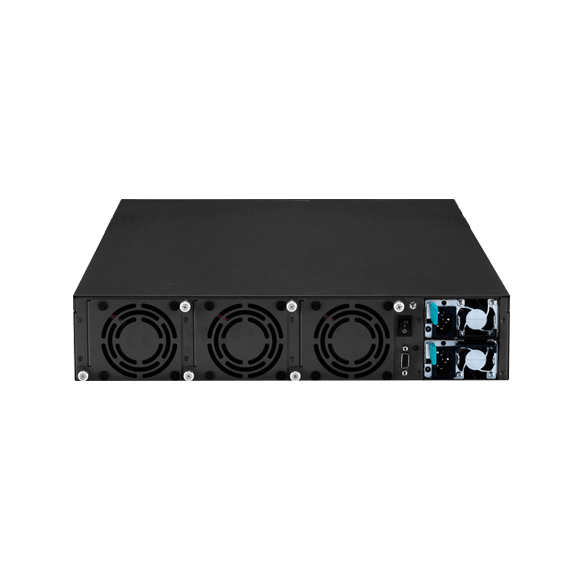

I/O rear panel interface
3 * Hot-swappable system wind
1*Power switch
1*VGA interface
Extension ports
Removable front expansion network module
Support 10/100/1000/10G/25G/40G/100G/200G rate
Support 1/2/4/8 interface quantity, support optical/electrical interface
Support optical/electrical Bypass function ** Please refer to the network module information **
storage
2*2.5” hot-swappable SSD
1 * M.2 2280 (B+M Key)
power input
1100W 1+1 CRPS redundant power supply
Product Size
Chassis size (depth * width * height): 650mm * 443mm * 88mm
weight
Net weight: 17.03kg
Including packaging: 25kg
environment
Working temperature: 0°C~40°
Storage temperature: -20°C~75°C
Relative humidity: 10%~90% non-condensing
Certification
Comply with CCC
